UFT 75040 Series is an ultrasonic flow meter designed to address shortcomings of the existing fluid flow sensors. It adopts the same standard as the existing pipes, so it can be applied and installed for a wide range of DN15~ DN1000m/m pipes.
● Can select measurement accuracy : ±1%, ±2%, ±3% ● Measurement of low flow rates and minimum flow velocity of 0.01m/s ● No pressure loss and a zero fault rate with no running parts ● IP68-rated protection, and used 2 meter deep water. ● High-temperature erosion-resistant ceramic sensors, and operating temperature ranging from -40 to 160℃ ● Can select the vertical or horizontal view and the remote type.
Measurement Principle Ultrasonic time differential method measures flow velocity depending on properties of changes occurring in ultrasonic radio wave speeds.
Operation Measuring Fluid Water and other water
Input Power Supply DC24V, 50mA
Application Temperature Ambient .. - 40℉ to 176℉ (-40℃ to +80℃) Fluid ....... - 40℉ to 320℉ (-40℃ to +160℃)
Fluid Pressure 10 bar Max.
Sensor Type High-temperature erosion-resistant ceramic sensor (ultrasonic)
Input Supply Rating Nomal Flow of Supply Pipe size

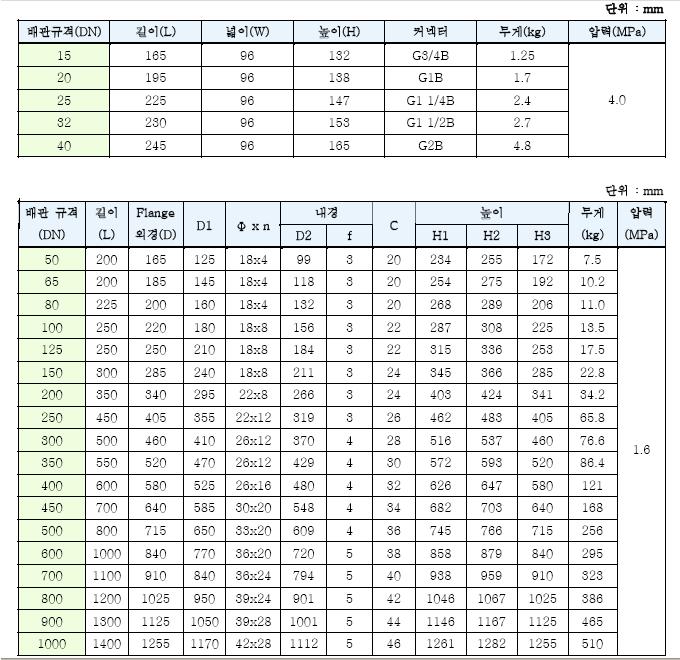

Pipe All-in-one die casting pipes (with water pipe standard) and selection from DN15 to DN1000 standard range.
